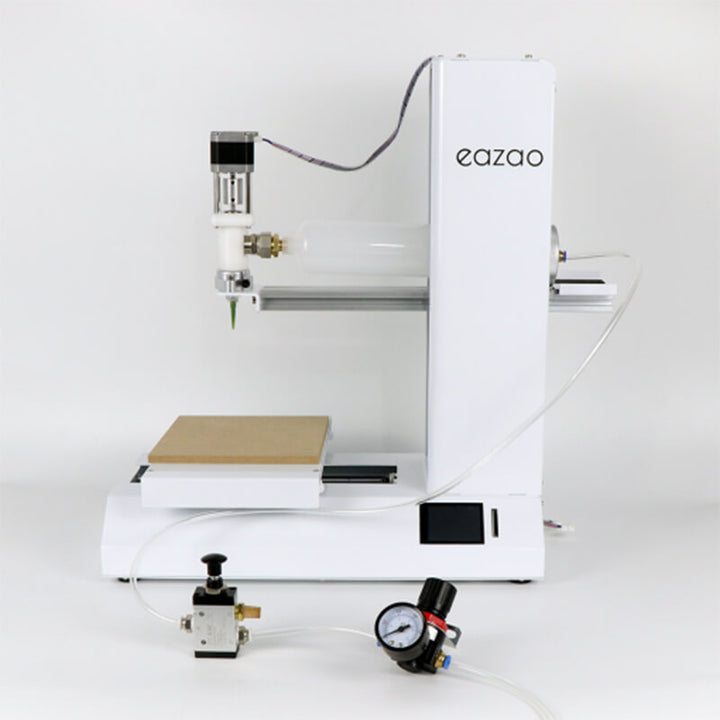

Eazao Potter Air Innovative Ceramic 3D Printer Print Size 165x165x280mm | Eazao Clay Ceramic 3D Printer
Innovative Air Extrusion Technology - Experience a new level of creativity with the Eazao Potter Air. Its unique air extrusion system replaces traditional electric pushers, allowing for smoother and more precise clay extrusion. Perfect for both beginners and experienced artists, this printer opens the door to endless artistic possibilities.
Print with Real Clay - Unleash your artistic flair by printing with genuine pottery or porcelain clay. The Eazao Potter Air is designed to handle various clay types, ensuring that your creations retain a natural and authentic feel. Achieve stunning results with real materials that bring your art to life.
User-Friendly Design - The Eazao Potter Air features a full-color touch screen and intuitive interface, making it easy to navigate through settings and designs. Whether you're a novice or a seasoned pro, you’ll find the printing process straightforward and enjoyable.
Large Build Volume - With a generous build volume of 165 x 165 x 280mm, the Eazao Potter Air allows you to print larger and more ambitious projects. Design anything from intricate pottery to substantial sculptures with ease and precision.
Compatibility with Multiple Operating Systems - Whether you're a Windows, Mac, or Linux user, the Eazao Potter Air has you covered. It supports various slicer software such as Cura and Simplify3D, making it simple to integrate into your existing workflow.
Free Shipping & Easy Setup - Enjoy complimentary air shipping on your Eazao Potter Air purchase, ensuring a hassle-free delivery experience. Setup is straightforward, allowing you to start your creative projects sooner without unnecessary delays.
Technical Specifications
Print Technology: DIW (Direct Ink Writing)
Build Volume: 165 x 165 x 280 mm (Width x Depth x Height)
Cartridge Capacity: 500 ml / 0.8 KG
Layer Thickness: 0.4 -1mm
Feeding Method: Air Pressure + Screw Extrusion
Nozzle Diameter: 1.6-3.3mm (Optional)
Print Speed: 10mm/s - 40mm/s
Supported Materials: Pottery or porcelain clay, Viscous fluid
Operating Systems: Windows, Mac, Linux
Slicer Software: Cura, SLic3r, Simplify3D etc
Input Formats: .STL, .OBJ etc
Output Format: .GCODE
Connectivity: Full color touch screen, SD Card, USB
Input Voltage: 100-240Vac~1.5A 50/60Hz
Output Voltage: 12V/10A Max 120W
Printer Frame Dimensions: 540 x 300 x 500 mm (Width x Depth x Height)
Package Volume: 550 x 500 x 290 mm (Width x Depth x Height)
Package Quality: 16.5 KG

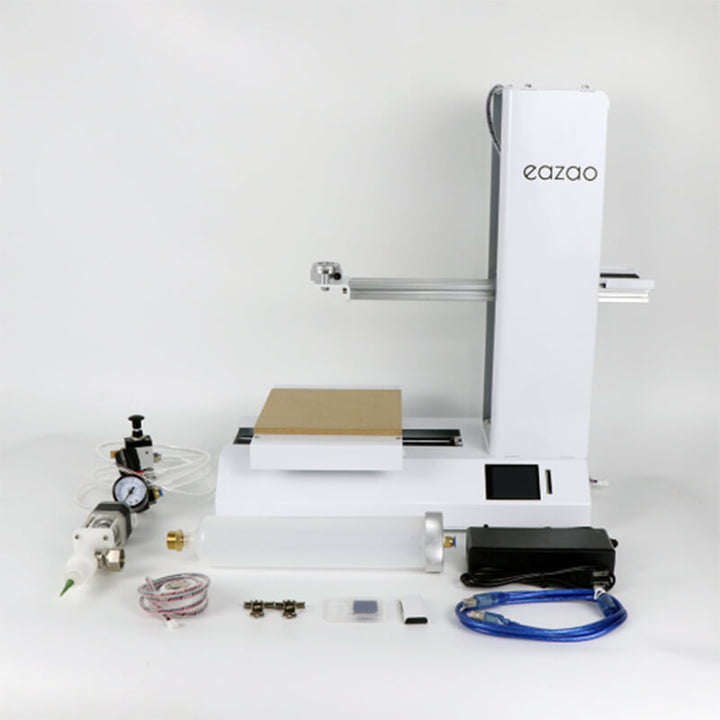

Packing List
1 x Eazao Potter Frame

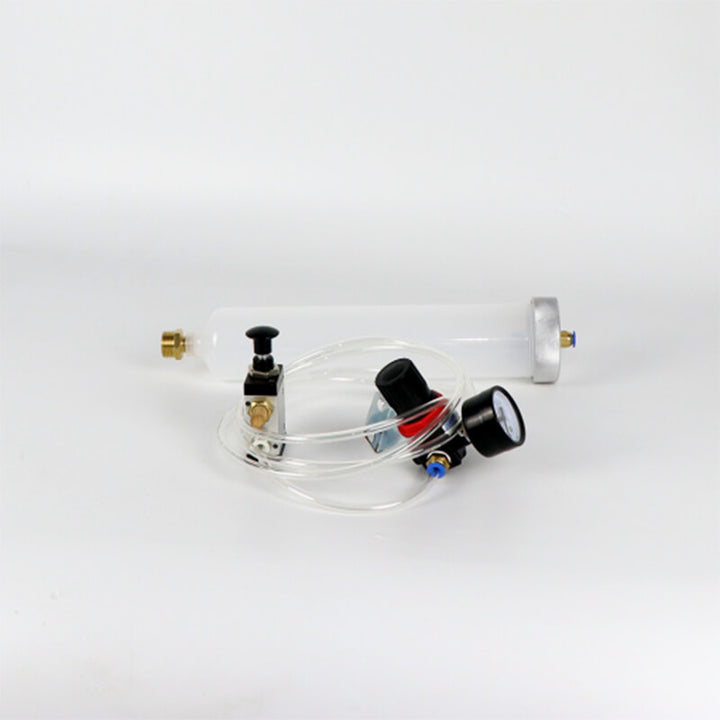

1 x Pneumatic Feeding System
1 x Power Adapter
1 x USB Cable
1 x Microwave Kiln (Optional)*

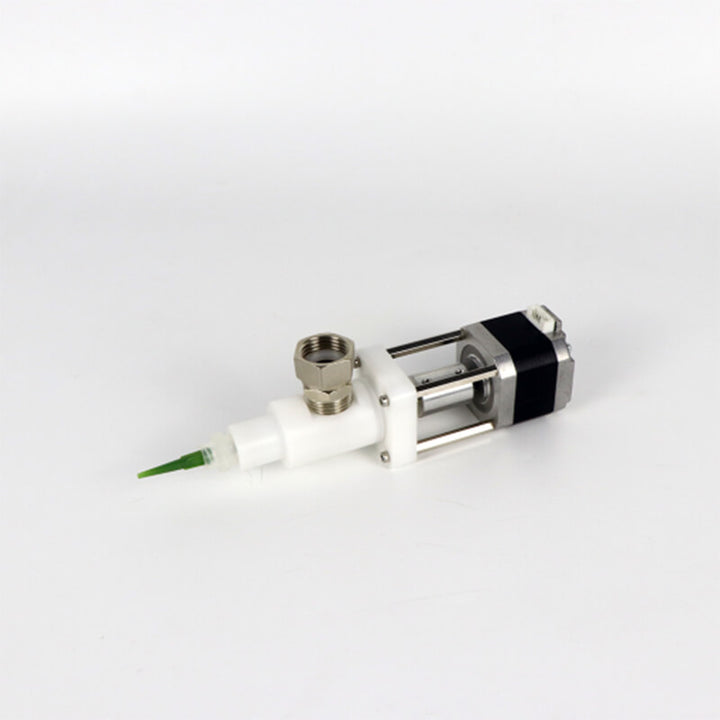

1 x Extruder
1 x Hex Key Set
1 x Nozzle Setter
1 x 2GB SD Card
1 x Horizontal Beam
1 x Barrel
1 x Printing Platform
1 x SD Card Reader
* 1 x Microwave Kiln (Optional)
* The optional part needs to be ordered separately according to your needs and is not in the equipment.
* You need to prepare your own air compressor for this model of 3D printer.

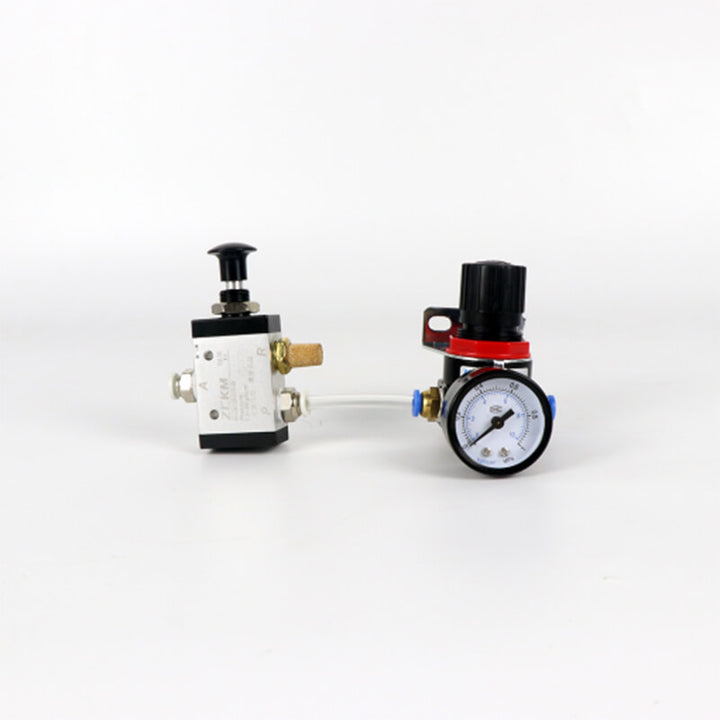

About Air Compressor:
The Eazao Potter Air ceramic 3D printer uses compressed air for propulsion, so you’ll need to purchase an air compressor. The compressor must provide a pressure of at least 0.6 MPa and a capacity of 8 liters or more.The Eazao Potter Air’s air inlet pipe has an outer diameter of 6 mm and an inner diameter of 4 mm. You’ll need to ensure that the air compressor outlet can accommodate a 6 mm outer diameter air pipe.
You can refer to the equipment here:
https://a.co/d/7q4G234
Eazao has no restrictions on clay materials, just use ordinary clay. You can buy it from your local pottery studio. Eazao Potter uses direct extrusion technology, which can extrude harder clay.
Galleries
What is the Eazao Potter Air and how does it work? -
The Eazao Potter Air is a special type of 3D printer that uses real clay to create pottery. Instead of using electricity to push the clay through a nozzle, it uses air pressure. This means you can make your own unique pottery pieces right at home!
Do I need to buy anything else to use the Eazao Potter Air? -
Yes, to use the Eazao Potter Air, you'll need to buy an air compressor. The compressor should provide at least 0.6 MPa pressure and have a capacity of 8 liters or more. Make sure it can connect to the printer's air pipe, which is 6 mm wide.
What kind of clay can I use with the Eazao Potter Air? -
You can use any ordinary clay for the Eazao Potter Air. You don’t have to buy special clay; just get it from your local pottery shop or online. The printer can also work with harder clays thanks to its special technology.
How big can my pottery pieces be? -
The Eazao Potter Air can make pottery pieces that are up to 165 mm wide, 165 mm deep, and 280 mm tall. This gives you lots of room to create everything from small cups to bigger planters!
What operating systems support the Eazao Potter Air? -
The Eazao Potter Air works with several operating systems including Windows, Mac, and Linux. So whether you use a Windows computer, a Mac, or another type, you can easily use this printer!
How do I control the Eazao Potter Air? -
Using the Eazao Potter Air is simple! It has a full-color touch screen that makes it easy to navigate and control. You can also connect it to your computer using an SD card or USB.
Is there support available if I need help with the printer? -
Absolutely! Eazao offers support on their website where you can find helpful information and contact them directly if you have any questions or need assistance.
How fast can the Eazao Potter Air print? -
The printing speed of the Eazao Potter Air ranges from 10 mm/s to 40 mm/s, depending on what you're making. This allows you to create your pottery at a comfortable pace!
What special features does the Eazao Potter Air have? -
One of the best features of the Eazao Potter Air is its air extrusion technology, which allows for more precise and detailed pottery creations. This printer uses real clay, letting you create beautiful and authentic pottery pieces.
Where can I find more information about using the Eazao Potter Air? -
For more details on how to use the Eazao Potter Air, you can visit Eazao support page or read their guides. You'll find lots of helpful tips on getting started and making the most out of your printer!
