Eazao Upgrade Your 3D Printing with Eazao's 86 Stepper Kit | Eazao Clay Ceramic 3D Printer
Enhanced Thrust Performance - The 86 Stepper Upgrade Kit significantly elevates the thrust performance of your 3D printer. Replacing the original 57 stepper motor, this upgrade boasts a torque increase from 2.5N.M to a powerful 12.2N.M, providing an impressive 4.88 times more force. Perfect for tackling challenging printing materials like hard clay, enhance your printing capabilities with this advanced solution.
Easy Installation - Upgrading your 3D printer has never been simpler! The 86 Stepper Upgrade Kit is designed for straightforward installation, allowing you to replace the original 57 stepper motor effortlessly. With all necessary components included, you can enhance your printer's performance without any complicated setups. Get started quickly and watch your printing potential soar!
Reliable Components - This upgrade kit includes high-quality components such as the NMRV40 reducer and the MA860H driver, ensuring durability and performance. Coupled with a robust 48V, 500W power supply, this kit is engineered for reliability, giving you the confidence to tackle any 3D printing job without worry.
User-Friendly Controls - Experience ease of use with the intuitive control setup included in the kit. The design features clear buttons for power, direction, and speed adjustment, allowing you to fine-tune your printing process effortlessly. Whether you're a beginner or an experienced user, this upgrade provides a seamless operating experience.
Safety Features - Safety is paramount with the 86 Stepper Upgrade Kit. Built with mechanisms to prevent excessive torque that could lead to injuries, and warnings about overloading with hard clay, this kit ensures safer operation of your 3D printer. Stay safe while pushing the boundaries of your printing capabilities!
Increased Versatility - With the enhanced torque and thrust, the 86 Stepper Upgrade Kit unlocks new possibilities for diverse materials. If you're looking to print with denser clays or other challenging materials, this kit not only improves performance but broadens the scope of your creative projects.
This kit can replace the original 57 stepper motor solution, greatly improve the putter thrust, and effectively solve the problem that hard clay cannot be pushed. The original 57 stepper motor (57-98) has a torque of 2.5N.M, and the upgraded 86 stepper motor (86-156) has a torque of 12.2N.M. The torque is increased by 4.88 times.

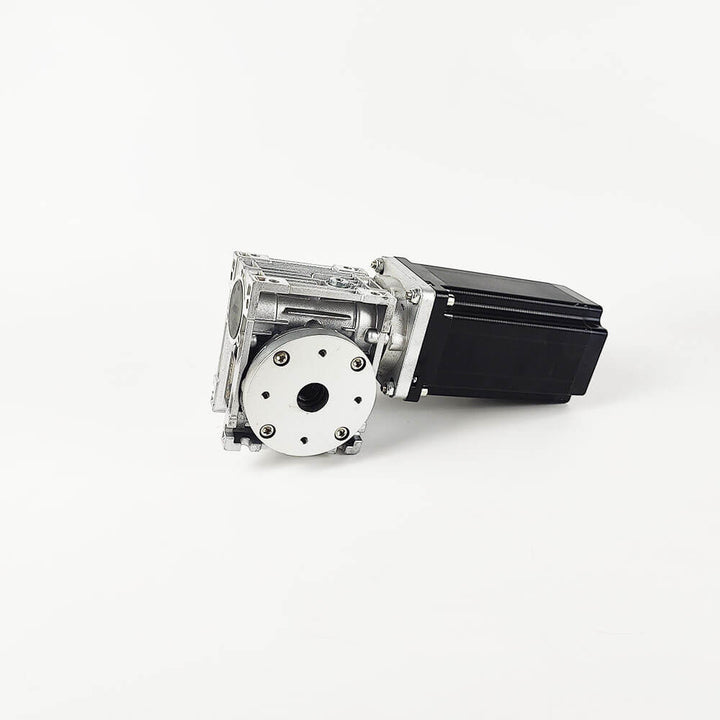

This solution uses NMRV40 reducer, 86-156mm stepper motor, MA860H driver, and the power supply is 48V, 500W.
！！！Special attention: Since the torque and thrust of the upgraded putter are particularly large, if the clay is too hard or the barrel is blocked, the push rod will be deformed and damaged.
Precautions:
1. Pay attention to safety when using it. The torque of the 86 stepper motor is very large to prevent being pinched.
2. It is still impossible to push particularly hard clay, which will cause the cartridge to break, burst or be damaged.
3. Apply grease to the screw rod of the putter to lubricate it to prevent wear.
After purchasing this kit, you only need to replace the original 57 stepper motor solution.

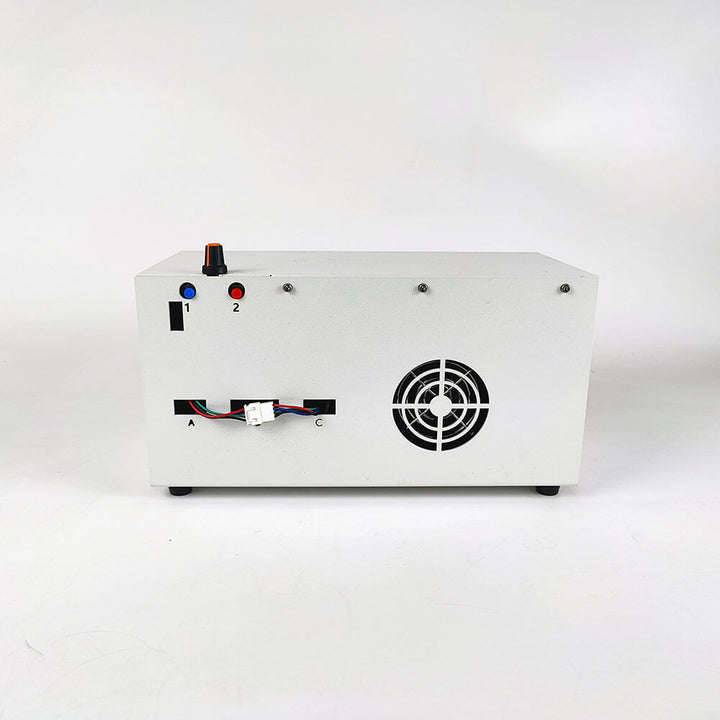

Among them, the red button is the switch, the blue button is for forward and reverse, and the orange knob is for speed adjustment.

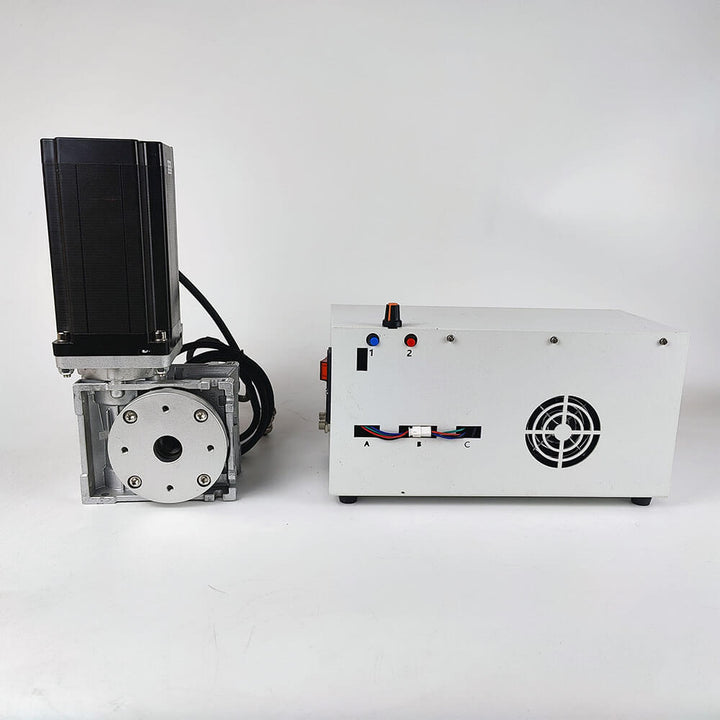

Size comparison between 86 stepper motor solution and 57 stepper motor solution:
What is the Eazao 86 Stepper Upgrade Kit? -
The Eazao 86 Stepper Upgrade Kit is an accessory designed to replace the original 57 stepper motor in your 3D printer. It significantly enhances the thrust power, allowing you to work with harder materials like tough clay more effectively.
How much does the Eazao 86 Stepper Upgrade Kit cost? -
The Eazao 86 Stepper Upgrade Kit is priced at $900.99 USD. It's a worthwhile investment for those looking to improve their 3D printing capabilities, especially with difficult materials.
Is it easy to install the Eazao upgrade kit? -
Yes! The Eazao upgrade kit is designed for easy installation. Once you have the kit, you simply replace the original 57 stepper motor with the new one. If you're unsure, you can always consult the installation instructions or seek help online.
What improvements can I expect with the Eazao upgrade? -
With the Eazao upgrade, the torque increases significantly from 2.5N.M (57 motor) to 12.2N.M (86 motor). This means you can push harder clay without damaging your equipment, making it much easier to work with tough materials.
Does the Eazao upgrade work for all types of clay? -
While the Eazao upgrade kit allows for better performance with hard clay, it doesn't solve every problem. If the clay is too hard or if the barrel gets blocked, it can still cause damage to the equipment. Be cautious!
What safety measures should I take when using the kit? -
Safety is essential! Make sure to watch out for your fingers while using the upgraded stepper motor, as the torque is very powerful. Additionally, regularly lubricate the screw rod to keep it functioning smoothly.
Can I use the Eazao upgrade kit for something other than 3D printing clay? -
The Eazao 86 Stepper Upgrade Kit is primarily designed for 3D printing applications, especially when working with clay. While it might be possible to use it for other materials, the best performance is with clay-based projects.
Where can I buy the Eazao 86 Stepper Upgrade Kit? -
You can purchase the Eazao 86 Stepper Upgrade Kit directly from the Eazao website. Simply visit their store section and add the kit to your cart.
What is included in the Eazao upgrade kit? -
The kit includes the Eazao upgraded 86-156mm stepper motor, a driver (MA860H), a power supply (48V, 500W), and all necessary components to ensure a smooth replacement of the old motor.
Are there any warranties available for the Eazao upgrade kit? -
1 year warranty.
