QIDI Hardened Steel Hot End for X-Max 3 / X-Plus 3 / X-Smart 3 The QIDI Hardened Steel Hot End is the only OEM replacement hotend rated to 350°C for the...
Description

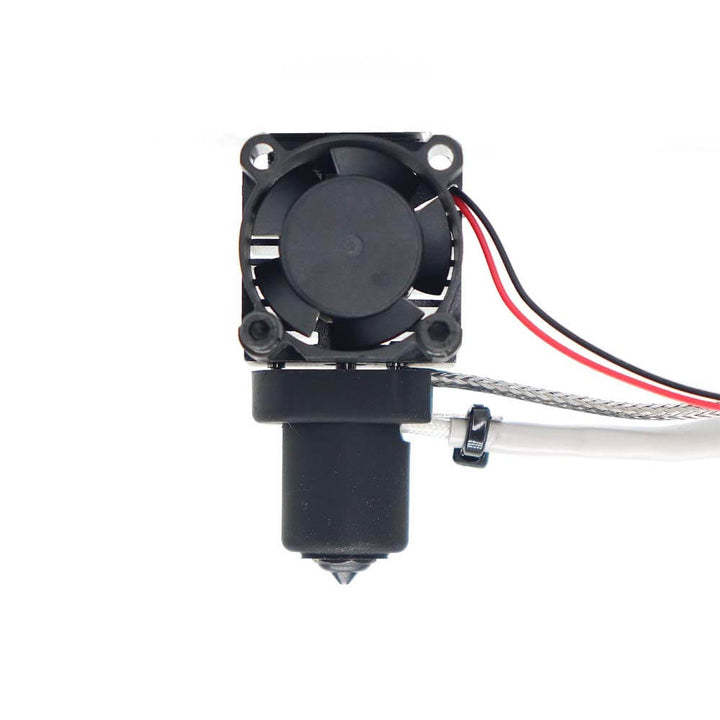

QIDI Hardened Steel Hot End for X-Max 3 / X-Plus 3 / X-Smart 3
The QIDI Hardened Steel Hot End is the only OEM replacement hotend rated to 350°C for the QIDI X-Max 3, X-Plus 3, and X-Smart 3, featuring a hardened steel nozzle and heat block that resists abrasion from carbon fiber, glass fiber, metal-filled, and glow-in-the-dark filaments — lasting 3–7× longer than the stock copper alloy or brass nozzle when printing abrasive materials.
$74.99
350°C Rated · Carbon Fiber Ready
Overview
The QIDI Hardened Steel Hot End is a direct replacement hotend assembly for the QIDI X-Max 3, X-Plus 3, and X-Smart 3 3D printers. While these printers ship with a copper alloy hotend (optimized for thermal conductivity with standard PLA/PETG), the hardened steel version is designed for users who print abrasive filaments — carbon fiber (PA-CF, PETG-CF, PLA-CF), glass fiber, metal-filled, wood-filled, and glow-in-the-dark materials. The hardened steel nozzle resists the abrasive wear that erodes a brass or copper nozzle in as little as 10–15 hours of carbon fiber printing. Rated to 350°C with a ceramic heater and 35mm³/s maximum flow rate, this hotend maintains the X3-series printer's full high-temperature capability while extending nozzle life to 150+ hours with abrasive filaments.
Key fact: Independent testing shows a hardened steel nozzle expands only +2.1μm after 120 hours of carbon fiber PLA printing, compared to +15μm for a brass nozzle — a 7× reduction in wear. This means consistent extrusion diameter and dimensional accuracy over hundreds of printing hours.
Key Features
Hardened Steel Nozzle
0.4mm hardened steel nozzle resists abrasion from CF, GF, metal-filled, and glow filaments. Lasts 3–7× longer than brass/copper with abrasive materials.
350°C Maximum Temperature
Ceramic heater reaches 350°C, supporting PA-CF, PETG-CF, PC, ABS, ASA, and other high-temp engineering filaments.
35mm³/s Max Flow
Volcano-style heat block with 35mm³/s maximum extrusion flow, matching the X-Max 3/X-Plus 3 high-speed capability up to 600mm/s.
OEM Fit & Calibration
Designed specifically for X-Max 3, X-Plus 3, X-Smart 3. Plug-and-play installation — no firmware modifications or PID re-tune required in most cases.
Ceramic Heater
Integrated ceramic heating element for fast heat-up and stable temperature control (±1.5°C) at high temperatures.
Complete Assembly
Includes hotend, cooling fan, heat break, nozzle, and wiring. Ready to install out of the box — no separate parts to source.
Technical Specifications
Hotend Performance
| Parameter | Specification |
|---|---|
| Nozzle Material | Hardened steel (abrasion-resistant) |
| Nozzle Diameter | 0.4 mm (default) |
| Heat Block Material | Hardened steel / alloy |
| Heater Type | Ceramic (cartridge) |
| Max Nozzle Temperature | 350°C |
| Max Flow Rate | 35 mm³/s (at 240°C PLA) |
| Temperature Stability | ±1.5°C |
| Heat Break | All-metal (integrated design) |
| Cooling Fan | Included (4010 axial) |
| Thermal Sensor | Thermocouple (high-temp rated) |
Compatibility
| Printer Model | Compatibility | Stock Hotend | Max Temp (Stock) |
|---|---|---|---|
| QIDI X-Max 3 | Yes (OEM) | Copper alloy + Hardened steel (2 included) | 350°C |
| QIDI X-Plus 3 | Yes (OEM) | Copper alloy + Hardened steel (2 included) | 350°C |
| QIDI X-Smart 3 | Yes (OEM) | Copper alloy + Hardened steel (2 included) | 350°C |
| QIDI X-Max 2 | No (different format) | Brass | 300°C |
| QIDI X-Plus 2 | No (different format) | Brass | 300°C |
| QIDI Q2 / Plus 4 / Max 4 | No (different hotend design) | Bimetal hardened steel | 370°C |
Supported Filaments
| Category | Filaments | Nozzle Temp Range | Abrasive? |
|---|---|---|---|
| Standard | PLA, PETG, TPU, ABS, ASA | 190–270°C | No |
| Engineering | PA (nylon), PC, PPS, PPA | 250–340°C | No |
| Carbon Fiber | PLA-CF, PETG-CF, PA-CF, PA12-CF, PAHT-CF | 230–330°C | Yes (primary use case) |
| Glass Fiber | PA-GF, PETG-GF | 250–300°C | Yes |
| Filled | Metal-filled, wood-filled, glow-in-the-dark | 190–240°C | Yes |
Physical
| Parameter | Specification |
|---|---|
| Package Contents | 1× Hardened steel hotend assembly (nozzle + heat block + heat break + heater + thermocouple + cooling fan + wiring) |
| Weight | ~120 g |
| Installation Time | 10–15 minutes |
| Tools Required | Allen wrench set (included with printer) |
| Warranty | 90 days |
Why Hardened Steel? Wear Comparison Data
| Nozzle Material | Thermal Conductivity | Hardness (Rockwell) | CF-PLA Wear (120h) | Abrasive Filament Lifespan | Price Range |
|---|---|---|---|---|---|
| Brass | ~120 W/m·K | B60–B80 | +15μm bore expansion | 10–25 hours | $2–$8 |
| Copper Alloy | ~300 W/m·K | B70–B90 | +10μm (est.) | 20–40 hours | $10–$25 |
| Hardened Steel | ~18 W/m·K | HRC 50–60 | +2.1μm bore expansion | 150–300+ hours | $15–$55 |
| Tungsten Carbide | ~80 W/m·K | HRA 90+ | <+1μm | 500+ hours | $40–$100 |
Hardened steel trades some thermal conductivity (18 W/m·K vs 120 for brass) for dramatically higher hardness (HRC 50–60 vs B60–B80 for brass). The lower thermal conductivity means the nozzle may need 5–10°C higher setpoint for the same material, but the 7× reduction in abrasive wear makes it the clear choice for carbon fiber and other filled filaments. The QIDI hardened steel hotend's ceramic heater and 35mm³/s flow rate compensate for the lower conductivity, maintaining fast heat-up and stable extrusion.
Installation Guide
- Power off and unplug the printer. Allow the hotend to cool completely (at least 30 minutes).
- Remove the front cover of the print head (2–4 screws, depending on model).
- Disconnect wiring: heater cartridge (2 wires), thermocouple (2 wires), and cooling fan (2–3 wires). Note connector positions.
- Remove the old hotend: unscrew the mounting bolts (usually 2–3 screws) and carefully pull the hotend assembly away from the carriage.
- Install the new hardened steel hotend: align with mounting holes, secure with screws, and reconnect all wiring to matching connectors.
- Reinstall the front cover.
- Power on and heat the nozzle to 200°C. Perform a PID auto-tune if your printer supports it (recommended after hotend swap).
- Load filament and perform a test extrusion to verify flow and temperature.
- Re-calibrate Z-offset if necessary (the new hotend may have slightly different nozzle tip position).
- Print a calibration cube to verify dimensional accuracy and surface finish.
Pro tip: After installing the hardened steel hotend, increase PLA/PETG nozzle temperature by 5–10°C compared to the copper alloy hotend. The lower thermal conductivity of hardened steel means the filament may not melt as quickly at the same setpoint. Test with a small calibration print first.
Pros & Cons
Pros
- 7× more abrasion-resistant than brass — 150–300+ hours with carbon fiber vs 10–25 for brass
- 350°C rated — supports PA-CF, PAHT-CF, PC, and other high-temp engineering materials
- OEM exact fit for X-Max 3, X-Plus 3, X-Smart 3 — no modifications needed
- 35mm³/s flow — maintains X3-series high-speed printing up to 600mm/s
- Complete assembly — includes nozzle, heat block, heater, thermocouple, fan, and wiring
- Consistent extrusion — hardened steel maintains 0.4mm bore diameter over 100+ hours (brass drifts after 10–15h)
- Better dimensional accuracy with abrasive filaments — no gradual under-extrusion from nozzle wear
- Cost-effective at $74.99 — cheaper than replacing a worn brass nozzle every 2–4 weeks
- Ceramic heater for fast heat-up and stable temperature at 300°C+
- All-metal heat break — no PTFE liner to degrade at high temperatures
Cons
- Lower thermal conductivity (~18 W/m·K vs 120 for brass) — may need 5–10°C higher nozzle temp for PLA/PETG
- Slower heat-up than copper alloy hotend due to lower conductivity
- QIDI proprietary format — not compatible with standard E3D/MK8 nozzles; limited third-party options
- 0.4mm only — QIDI does not offer 0.2/0.6/0.8mm hardened steel nozzles separately for this hotend
- Not for X2-series — incompatible with X-Max 2, X-Plus 2, X-Smart 2 (different hotend design)
- PLA may print brittle — some users report PLA parts are more brittle with hardened steel due to different thermal profile; increase temp 5–10°C
- PID re-tune recommended — after swapping hotends, a PID auto-tune ensures stable temperature control
- More expensive than brass — $74.99 vs $5–10 for a generic brass nozzle (but lasts 10–20× longer)
- Still wears eventually — carbon fiber will wear hardened steel too, just much slower (150–300h vs 10–25h)
- Installation requires disassembly — front cover removal and wiring reconnection; 10–15 min process
When to Use Hardened Steel vs Copper Alloy Hotend
| Scenario | Recommended Hotend | Reason |
|---|---|---|
| Printing PLA, PETG, TPU only | Copper alloy (stock) | Better thermal conductivity = faster heat-up, smoother extrusion, lower temp needed |
| Printing carbon fiber (any type) | Hardened steel | Brass/copper wears in 10–25h; hardened steel lasts 150–300h |
| Printing glass fiber, metal-filled, glow | Hardened steel | All abrasive filaments erode soft nozzles rapidly |
| Printing PA-CF, PAHT-CF, PC at 300°C+ | Hardened steel | Both hotends rated to 350°C, but hardened steel resists wear from filled nylons |
| High-speed PLA/PETG (500–600mm/s) | Copper alloy (stock) | Higher conductivity maintains melt at high flow rates |
| Mixed materials (PLA + CF) | Hardened steel | Better to use hardened steel for all prints than swap hotends frequently |
| Fine detail / exhibition quality PLA | Copper alloy (stock) | Better thermal control produces slightly smoother surface finish |
FAQ
What is the difference between the hardened steel hotend and the stock copper alloy hotend?
The hardened steel hotend uses a hardened steel nozzle (HRC 50–60) that resists abrasion from carbon fiber, glass fiber, and metal-filled filaments, lasting 150–300+ hours vs 10–25 hours for brass/copper. The copper alloy hotend has higher thermal conductivity (~300 vs ~18 W/m·K) for faster heat-up and smoother PLA/PETG extrusion. Both are rated to 350°C. The X-Max 3/X-Plus 3 ship with both hotends included; this product is the hardened steel replacement or spare.
Can I print carbon fiber with the stock copper alloy nozzle?
Technically yes, but not recommended for more than 10–25 hours. Carbon fiber particles are highly abrasive and will erode the inner bore of a copper alloy nozzle, causing inconsistent extrusion, stringing, and dimensional drift. After 10–15 hours of CF printing, a copper nozzle may show visible grooves and +10μm bore expansion. The hardened steel nozzle shows only +2.1μm after 120 hours — a 7× improvement. For regular CF printing, the hardened steel hotend is essential.
Will the hardened steel hotend work with the QIDI X-Max 2 or X-Plus 2?
No. The QIDI Hardened Steel Hot End is designed exclusively for the X-Max 3, X-Plus 3, and X-Smart 3. The X2-series printers use a different hotend format, mounting, and wiring. Attempting to install this hotend on an X2-series printer will result in fitment and electrical compatibility issues. Check your printer model number before purchasing.
Do I need to re-tune PID after installing the hardened steel hotend?
It is recommended but not always required. The hardened steel hotend has different thermal mass and conductivity than the copper alloy version, which can affect PID temperature stability. Most users find the stock PID settings work adequately, but running a PID auto-tune (available in the printer's settings menu or via Klipper/Fluidd) will ensure the most stable temperature control, especially at 300°C+ for nylon and polycarbonate.
Why does my PLA print differently with the hardened steel nozzle?
Hardened steel has lower thermal conductivity (~18 W/m·K) than copper (~300 W/m·K) or brass (~120 W/m·K). This means the nozzle tip may run slightly cooler at the same setpoint, and the filament may not melt as quickly. Some users report PLA parts feeling more brittle or having slight under-extrusion. The fix is simple: increase the nozzle temperature by 5–10°C (e.g., from 210°C to 220°C for PLA) and verify with a calibration print. The hardened steel hotend is optimized for abrasive and high-temp materials, not maximum PLA quality.
How long does the hardened steel nozzle last with carbon fiber?
Independent testing shows a hardened steel nozzle maintains its 0.4mm bore within +2.1μm after 120 hours of continuous carbon fiber PLA printing. Real-world lifespan depends on filament type (PA-CF is more abrasive than PLA-CF), print temperature, and nozzle size. Typical lifespan ranges from 150–300+ hours with abrasive filaments, compared to 10–25 hours for brass. Signs of wear include increased stringing, inconsistent extrusion, and visible widening of the nozzle tip.
Can I use third-party nozzles with this hotend?
The QIDI X3-series uses a proprietary nozzle format (Volcano-style with QIDI-specific threading and heat break integration). Standard E3D V6, MK8, or Volcano nozzles are not directly compatible. QIDI does not currently offer separate replacement nozzles in different sizes (0.2, 0.6, 0.8mm) for this hotend — the hotend assembly is sold as a complete unit with a 0.4mm nozzle. Some users have reported success with carefully adapted third-party Volcano nozzles, but this is not officially supported.
Is the hardened steel hotend harder to install than a standard nozzle swap?
This is a complete hotend assembly replacement, not just a nozzle swap. Installation takes 10–15 minutes and requires removing the print head front cover, disconnecting heater/thermocouple/fan wiring, unbolting the old hotend, and reversing the process for the new one. Basic mechanical skills and the included Allen wrenches are sufficient. No soldering or firmware modification is required. After installation, run a PID auto-tune and re-calibrate Z-offset.
What temperature should I use for PA-CF (nylon carbon fiber) with this hotend?
PA-CF (nylon carbon fiber) typically prints at 260–300°C nozzle, 80–100°C bed, with the QIDI X3-series chamber at 55–65°C. The hardened steel hotend's 350°C rating provides 50–90°C of headroom. Always dry PA-CF filament at 65°C for 4–6 hours before printing (the QIDI drying box or a dedicated filament dryer works well). Start with the printer's default PA-CF profile and adjust 5–10°C if you see under-extrusion or bubbling.
Is the $74.99 price worth it compared to cheap brass nozzles?
Yes, if you print abrasive filaments regularly. A $5 brass nozzle lasts 10–25 hours with carbon fiber before needing replacement — that's $0.20–$0.50 per hour. The $74.99 hardened steel hotend lasts 150–300+ hours — that's $0.18–$0.37 per hour, plus the benefit of consistent print quality (no gradual nozzle wear causing failed prints). If you print only PLA/PETG, the stock copper alloy hotend is sufficient and the hardened steel version is unnecessary.
