Twotrees TTC6050 CNC Router for Precise Woodworking | Twotrees CNC Router
Effortless Touch Control - Experience seamless operation with the Twotrees TTC6050 CNC Router, equipped with a smart touch interface. This feature simplifies navigation, allowing you to adjust settings and make selections with just a tap. Control your projects effortlessly while focusing on your creative tasks.
Powerful Motor for Efficient Performance - The TTC6050 features a robust motor providing high torque and impressive cutting speeds up to 5000 mm/min. This ensures efficient engraving and cutting, making it suitable for both detailed designs and larger projects, delivering high precision in every stroke.
Larger Carving Area for Unbounded Creativity - Unlock limitless design possibilities! With a generous carving area of 600mm x 500mm, the Twotrees CNC Router accommodates various projects, from intricate engravings to larger pieces. This ample space allows hobbyists and professionals alike to realize their most ambitious woodworking ideas.
Enhanced Safety Features - Safety is paramount with the TTC6050. It comes equipped with emergency stop protection and tool change safety functions, ensuring your work environment remains secure. The infrared sensing system provides real-time monitoring, stopping the spindle instantly in case of any anomalies.
Dust-Proof and Durable Design - Crafted with durability in mind, the dust-proof drive protects internal components from debris, ensuring long-term stability and reliability of the machine. This feature enhances the router’s lifespan, making it a worthwhile investment for all your woodworking projects.
Versatile Compatibility with Accessories - Expand your creative possibilities with the TTC6050’s compatibility with various accessories. From 20W laser attachments for intricate engravings to rotary axes for cylindrical designs, the router adapts effortlessly to meet diverse project requirements, keeping your workflow innovative and exciting.

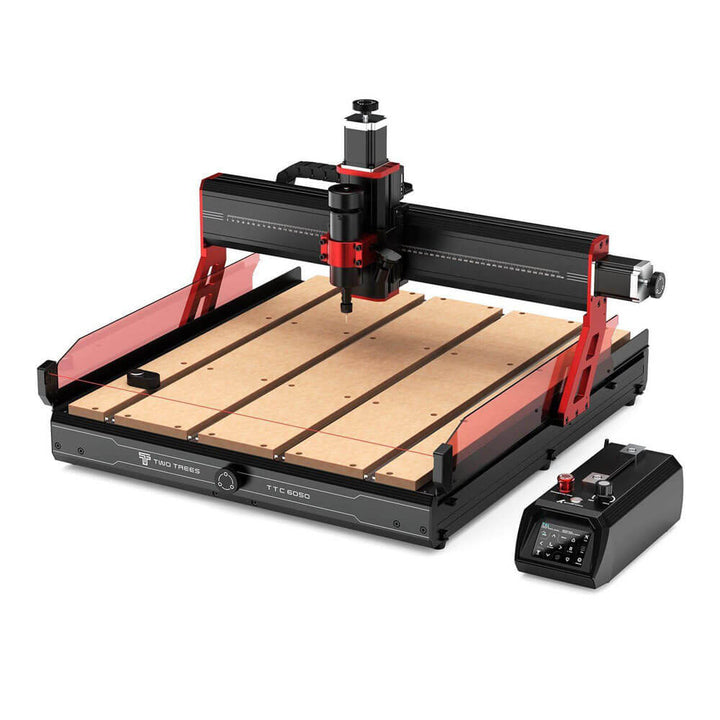

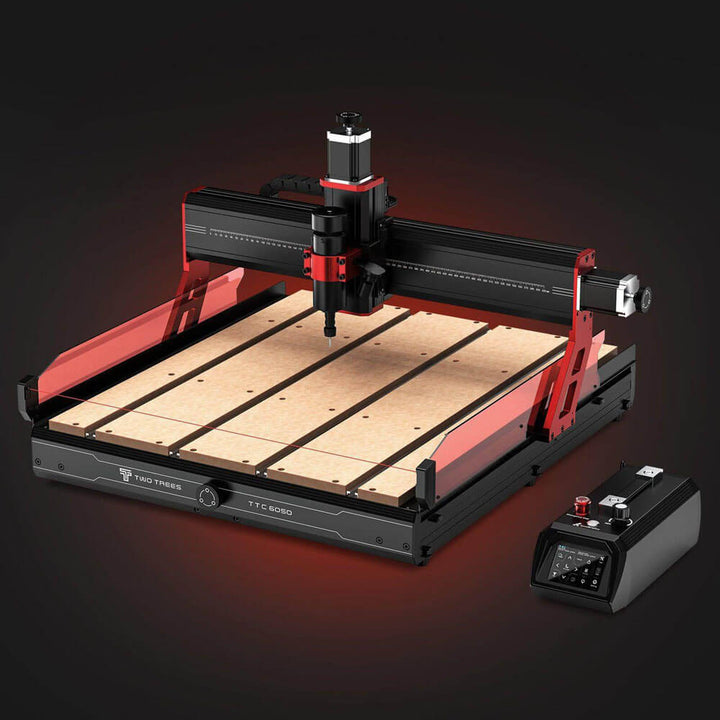

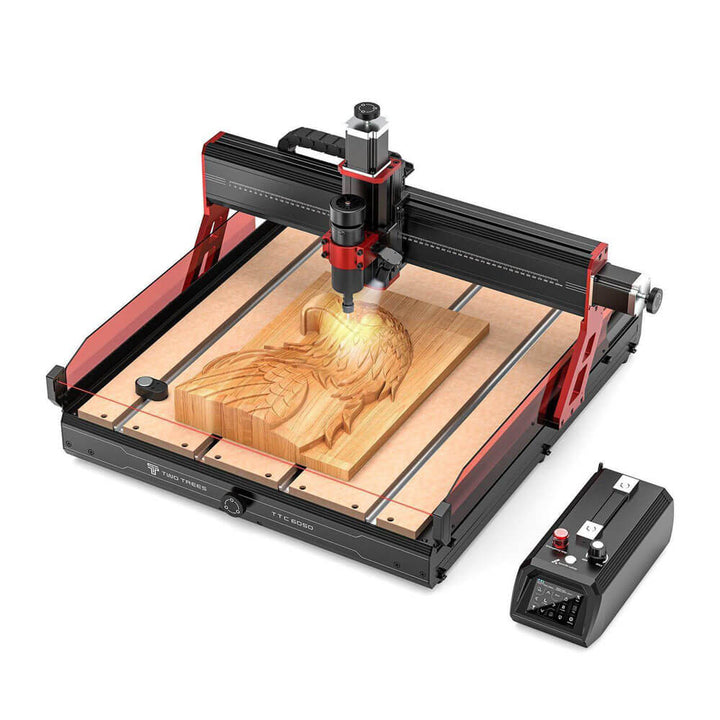

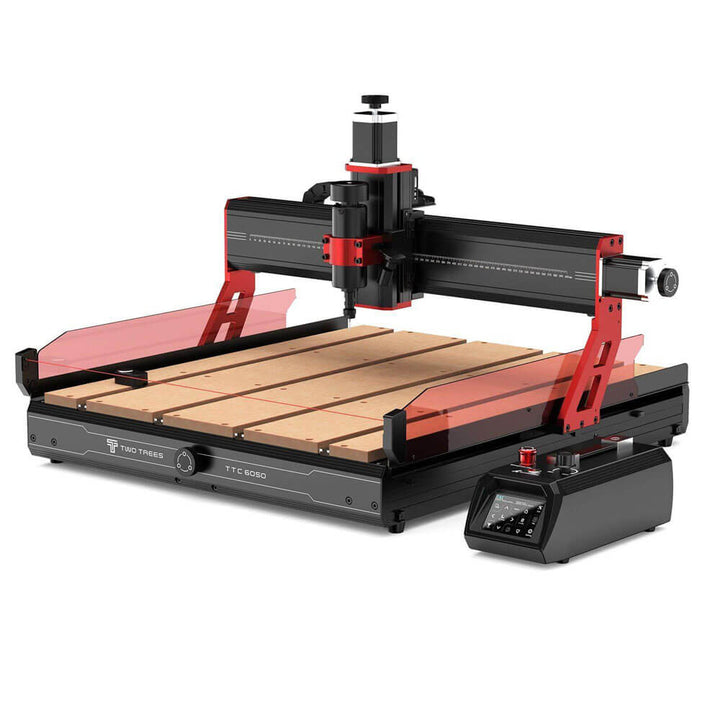

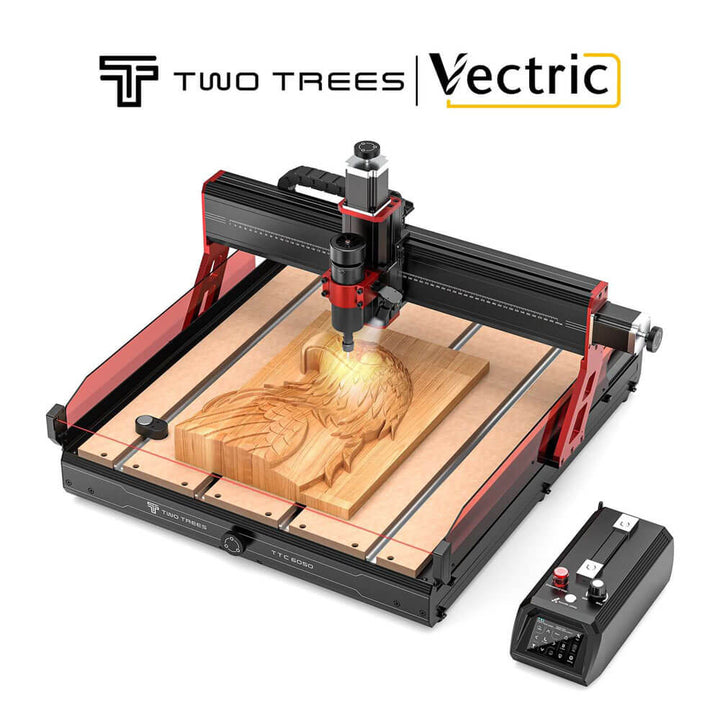

TTC6050 CNC Router
Let's Carve Something Amazing Together

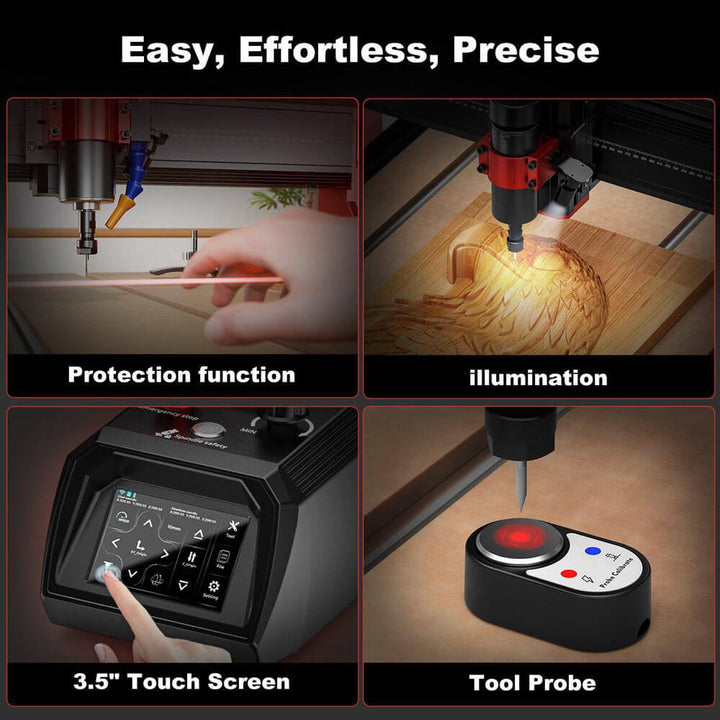

Smart Touch | Effortless Control at Your Fingertips
Multi-Function Control | Offline Carving
Emergency Stop Protection | Tool Change Protection

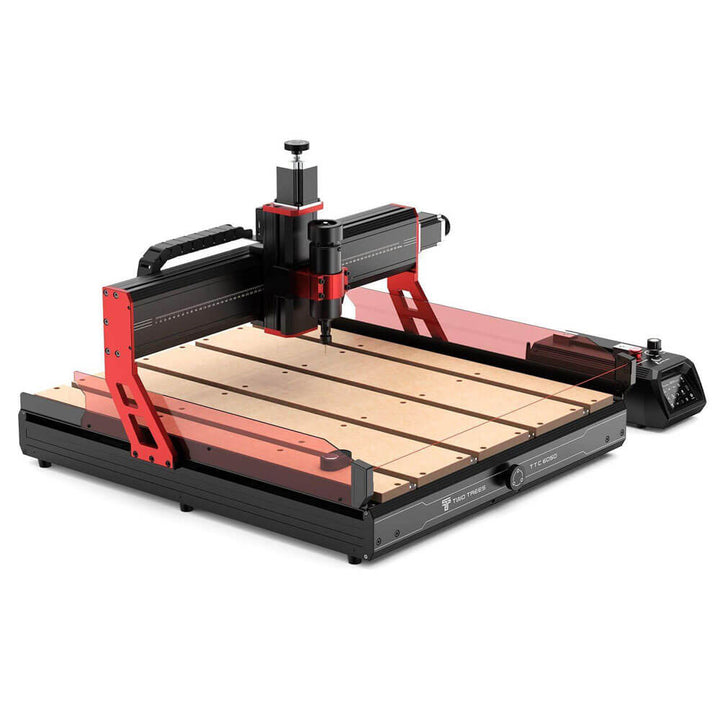

Crafted with Industrial Thinking

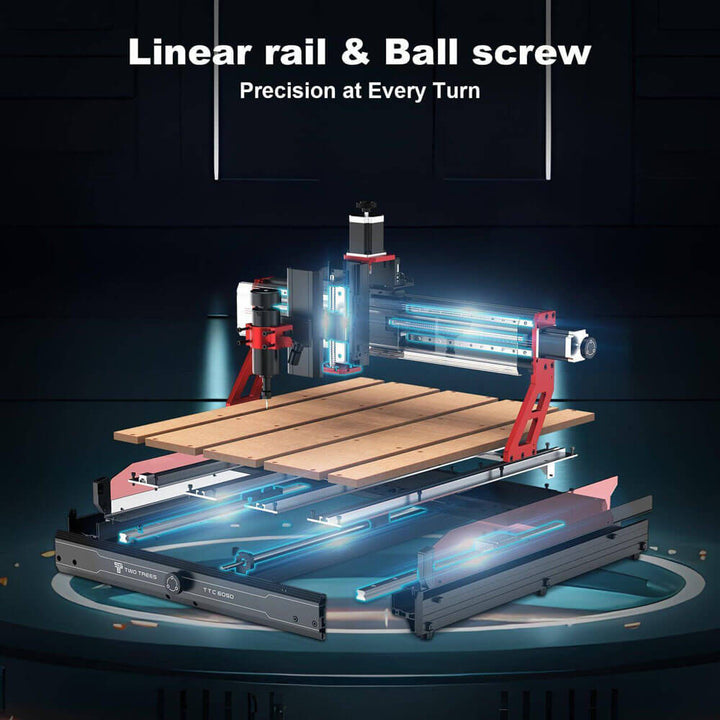

Three Axes with Linear Rails & Ball Screws

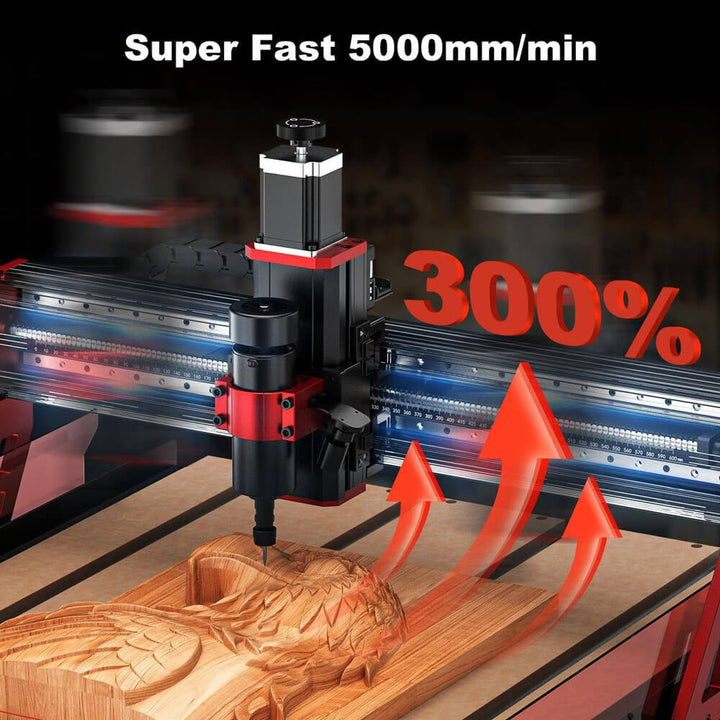

Powerful Motor, Precision Drive
Powerful motor and high torque design ensure efficient cutting and engraving. The motor is equipped with a hand-tightened nut for easy and precise manual position adjustment. Max Speed 5000mm/min.

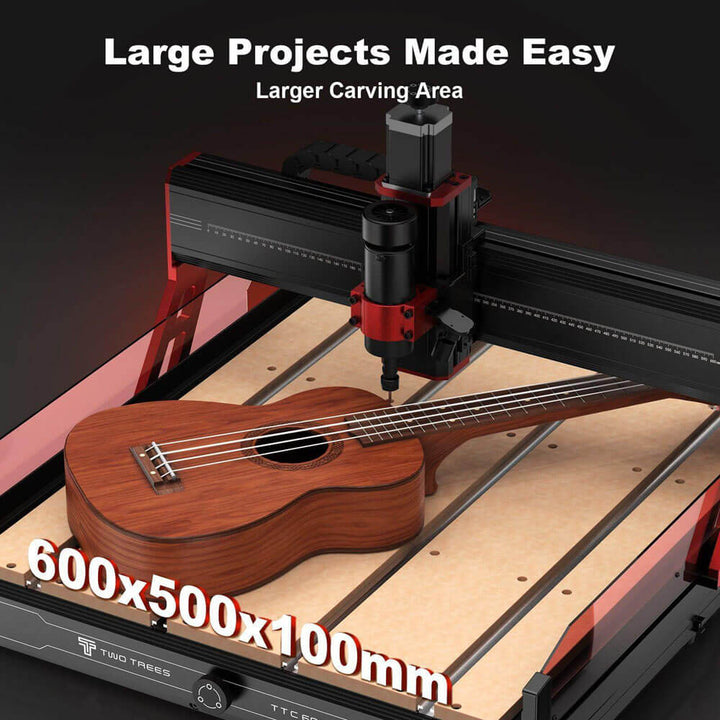

Larger Carving Area
Large carving area, offering more design space for complex engraving and cutting tasks, unlocking endless creative possibilities.
600mm( 23.6in ) x 500mm( 19.7in ) x 100mm( 4in ).
Infrared Sensing, Double Safety
Automatic Protection: Real-time monitoring of the carving area, spindle stops within one second to ensure safety.
Replaceable MDF Baseboard
Cost-Effective and Practical Design, Ideal for Cutting Wood, Plastic, and Metal Sheets
Dust-Proof Drive, Stable & Durable
Dust-proof design ensures long-term stability and reliability of the transmission components, protecting them from debris and wear, extending the lifespan of the machine.
Quick Setup
Unbox and Use in 30 Minutes
Convenient Expansion, Easy Adaptation
20W Laser Compatible
The 20W laser excels in creating fine, intricate texture engravings with high precision. Its focused beam allows for detailed patterns and textures on a variety of materials, including wood, leather, and acrylic.
800W Spindle Compatible
The 800W spindle reaches a maximum speed of 30000 RPM, offering flexibility to meet different processing needs. Its adjustable speed range allows it to handle both light-duty and heavy-duty applications efficiently.
Vacuum Cleaner Compatible
Depending on the machining requirements, the vacuum cleaner effectively collects dust and debris during the process, ensuring a clean and safe working environment.
Rotary Axis Compatible
The Rotary Axis transforms your CNC router into a versatile 4-axis machine, enabling precise carving and engraving on cylindrical or irregularly shaped objects.
Max Speed 12000 RPM
500lm Spotlight
Tool Setting in 1 Minute

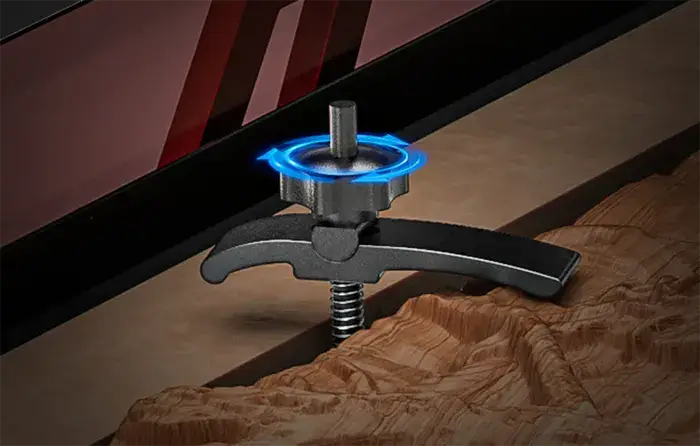

High-Rigidity Clamp
Specifications
Device size: 811 x 769x 530 mm (excl Control Box)
Net weight: 35.9 kg
Working area: 600 x 500 x100 mm (23.6in*19.6in*3.9in)
Material: Aluminium
Supported tool diameters: 0.5-7 mm (ER11 clip)
Device display: 3.5-inch IPS resistive color screen, touch (480 x 320 pixel resolution)
Max milling speed: 5000 mm/min
Maximum acceleration: 500 mm/s²
Spindle motor: 500W Spindle Motor
Main shaft speed: 12000 rpm

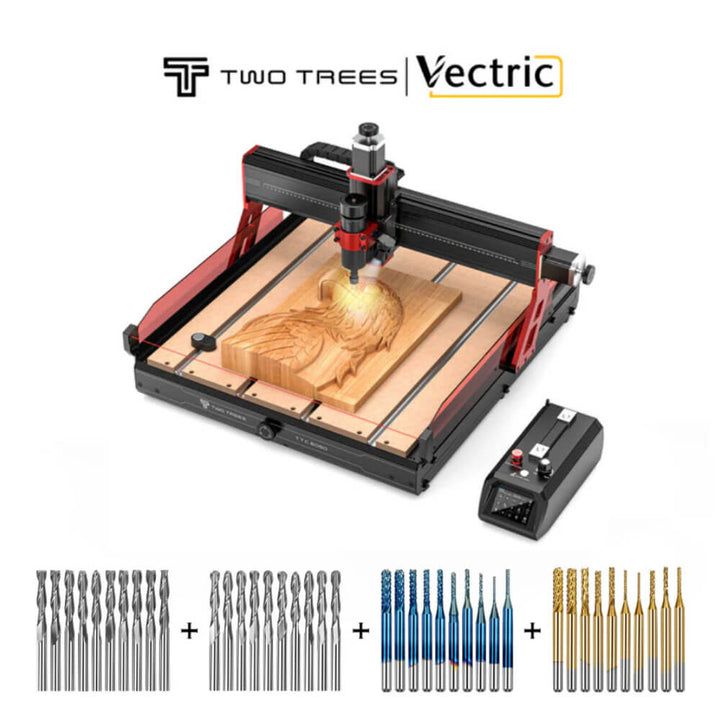

Compatible software: VCarve, Fusion360, EASEL, Carveco Maker
Firmware: GRBL is open source and supports both CNC and laser (no firmware required)
Operating system: Windows, Macos, Linux
Voltage: 24V
Performance: 110W Total | 15W In Standby Mode
Carving layer height: Non-metal 0.1mm-20mm | Metal 0.1mm-0.2mm
Compatible engraving materials: Plywood / MDF / Solid wood / Acrylic / Carbon fiber / Aluminum / Copper / Stainless steel
Program support formats: .nc\.Gcode
Touch screen support: Motion control, emergency stop, speed control, tool setting control, laser / CNC function switching, precision calibration
Touchscreen language switch: Chinese / English / German / Russian / Japanese / French / Portuguese / Spanish
What is the Twotrees TTC6050 CNC Router used for? -
The Twotrees TTC6050 CNC Router is a special machine designed for engraving and cutting various materials. You can use it for woodworking, creating intricate designs, and even making items like toys or furniture. It's perfect for both beginners and experienced woodworkers!
How big can I carve with this Twotrees CNC Router? -
This Twotrees CNC Router has a large working area of 600mm by 500mm, which is about 23.6 inches by 19.7 inches. This means you can create big and beautiful designs without any trouble!
Is it safe to use? -
Yes, the Twotrees TTC6050 is designed with safety features. It has an emergency stop button and real-time monitoring, which helps protect both the user and the machine during operation.
What materials can I use with it? -
You can use the Twotrees TTC6050 with many materials such as wood, plastic, and even metals like aluminum and copper. This opens up a variety of projects you can create!
Is it easy to set up? -
Yes! The Twotrees CNC Router is designed to be user-friendly. You can unbox it and get started in about 30 minutes. Clear instructions are included to help you along the way.
Do I need any special software? -
To use the Twotrees TTC6050, you can operate it with software like VCarve or Fusion360. If you're a beginner, these programs make it easy to design your projects!
Can it work offline? -
Yes! The Twotrees CNC Router has a multi-function control system that allows it to operate offline. You can load your design and let it do the carving without needing a computer.
How fast can it carve? -
The Twotrees TTC6050 has a maximum speed of 5000 mm/min. This means it can carve and create designs quickly and efficiently!
What if I have questions or need help? -
If you have any questions or need assistance, you can reach out to the support team at Twotrees. We are very helpful and ready to assist you.
Can I use it for small projects? -
Absolutely! This Twotrees CNC Router is great for both large and small projects. Whether you want to make tiny decorations or larger items, it can handle it all!
